Every metre added is a little voltage lost

The best solar extension cables for 2026

An extension cable is solar cable with connectors already fitted, and it is bought because the panel is further from the controller than the lead allows. The trade is measurable: every metre adds resistance, and the voltage drop over the run is the figure that decides whether the extension is free or expensive. A ten-metre pair in 4 mm² carrying six amps loses a fraction of a volt; the same run in 2,5 mm² carrying twelve loses enough to matter on a 12 V system. So the two specifications to read together are length and cross-section, and a listing that gives the first without the second is describing half the product. The connectors are factory-fitted, which is generally better than a field crimp, and the question is whether they are moulded or assembled and whether the pair is compatible with the panel already owned. Most of this shelf is sold in pairs, one positive and one negative, and some listings quote the length of the pair rather than of each cable. We compare length, cross-section, connectors, expected voltage drop, ingress rating and what a pair contains.

Every part on this shelf, side by side

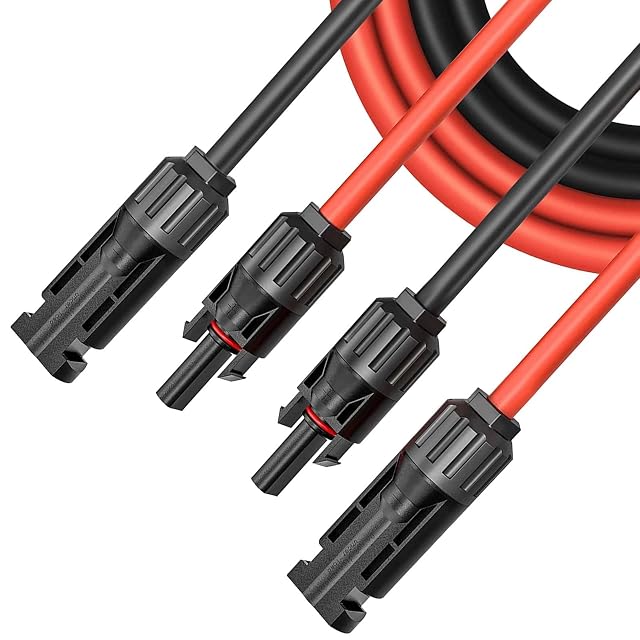

  1. Gbformat 1 m solar extension lead with fitted connectors

    Gbformat 1 m extension, 6 mm², tinned copper, XLPE, IP67

    A one-metre 6 mm² solar extension lead with fitted connectors, a tinned copper conductor and XLPE insulation, rated IP67 from −45 °C to 90 °C.

    Length
    1 m, from the title
    Cross-section
    6 mm², from the title
    Connectors
    Fitted both ends, PPO housings, second bullet — plugs directly into modules or an inverter
    Expected voltage drop
    Nowhere in the listing
    Ingress rating
    IP67, resisting −45 °C to 90 °C, third bullet — the widest temperature range in this family
    What a pair contains
    A single lead rather than a pair
    Amazon reference
    B0BB7G2758 (same reference on 4 Amazon marketplaces)
    EAN
    0768461106043
    • An operating range published at both ends — −45 °C to 90 °C
    • Tinned copper conductor and XLPE insulation both named
    • A single lead, so two are needed for both poles

    Best for: Bridging a short gap between a panel and a junction, on one pole at a time.

    ≈ €6
    Check price on Amazon

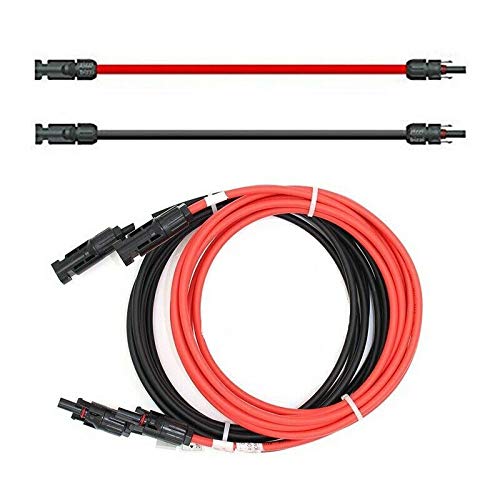

  2. solartronics 1 m solar extension pair in red and black

    solartronics Pair of 1 m extensions, 4 mm², H1Z2Z2-K, red and black

    A pair of one-metre 4 mm² H1Z2Z2-K solar extension leads in red and black, with connectors fitted at both ends and a tinned copper conductor.

    Length
    1 m each, from the title
    Cross-section
    4 mm², from the title
    Connectors
    Pre-fitted both ends, described as compatible with MC4 and PV distributors, second bullet
    Expected voltage drop
    Nowhere in the listing
    Ingress rating
    Nowhere in the listing
    What a pair contains
    Two leads, one red and one black, from the title — both poles covered
    Amazon reference
    B08L6K3L9G (same reference on 5 Amazon marketplaces)
    EAN
    4260464593449
    • Sold as a pair, so both poles are covered in one purchase
    • H1Z2Z2-K designation stated, which two extension leads here omit
    • No ingress rating at all

    Best for: A short bridge in an existing 4 mm² run.

    ≈ €7
    Check price on Amazon

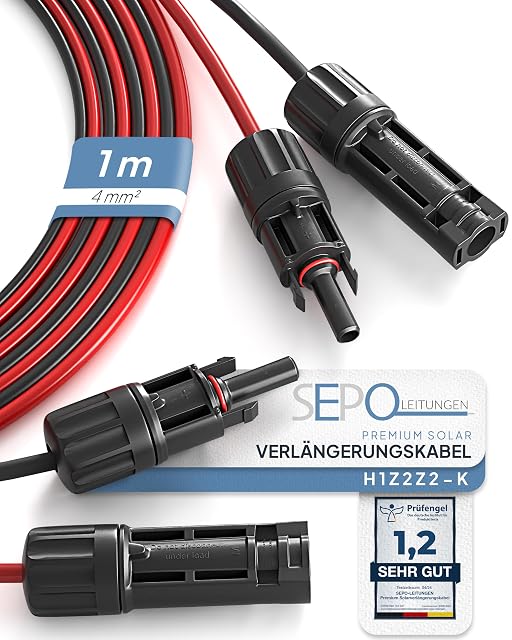

  3. SEPO-LEITUNGEN 1 m solar extension pair with MC4 connectors

    SEPO-LEITUNGEN Pair of 1 m extensions, 4 mm², 30 A, 1500 V DC, −40 to +90 °C

    A pair of one-metre 4 mm² extension leads rated 30 A at 1500 V DC, from −40 °C to +90 °C, in oxygen-free tinned copper with cross-linked polyolefin insulation.

    Length
    1 m each, from the title
    Cross-section
    4 mm², with 6 mm² also available, third bullet
    Connectors
    MC4-type fitted both ends, from the title
    Expected voltage drop
    Nowhere in the listing
    Ingress rating
    Nowhere in the listing
    What a pair contains
    Two leads, from the title; current rating 30 A, nominal voltage 1500 V DC, temperature −40 °C to +90 °C, third bullet
    Amazon reference
    B0C899WTZM (same reference on 1 Amazon marketplace)
    EAN
    4262413910161
    • A current rating is published — 30 A — which no other cable or lead in this family gives
    • Voltage and temperature range both published alongside it
    • No ingress rating, despite the connectors

    Best for: Anyone who wants to know what the lead will actually carry.

    ≈ €8
    Check price on Amazon

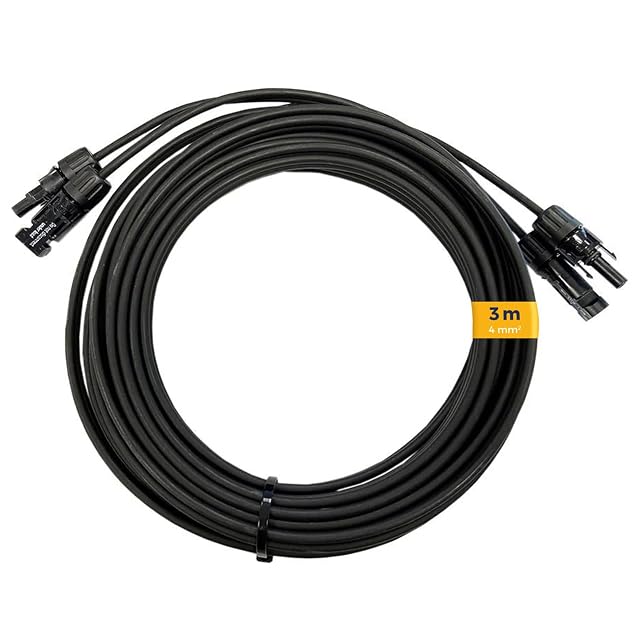

  4. Kleines Kraftwerk 3 m solar extension pair with MC4 connectors

    Kleines Kraftwerk Pair of 3 m extensions, 4 mm², EN 50618, IP67, buriable

    A pair of three-metre 4 mm² extension leads certified to EN 50618 and H1Z2Z2-K, rated IP67, buriable, and short-circuit resistant to 200 °C for five seconds.

    Length
    3 m each, from the title
    Cross-section
    4 mm², second bullet
    Connectors
    MC4 pre-fitted both ends for plug-and-play installation, first bullet
    Expected voltage drop
    Nowhere in the listing
    Ingress rating
    IP67, buriable, third bullet
    What a pair contains
    Two 3 m leads, second bullet; certified to EN 50618 and H1Z2Z2-K, −40 °C to +120 °C, short-circuit resistant to 200 °C for 5 s
    Amazon reference
    B0F8J2C37S (same reference on 6 Amazon marketplaces)
    EAN
    9503868658730
    • A short-circuit rating with its duration — 200 °C for five seconds — which nothing else in this catalogue publishes
    • Both EN 50618 and H1Z2Z2-K cited, with a −40 °C to +120 °C range
    • No voltage drop figure

    Best for: A garden run that has to go underground between a panel and a building.

    ≈ €16
    Check price on Amazon

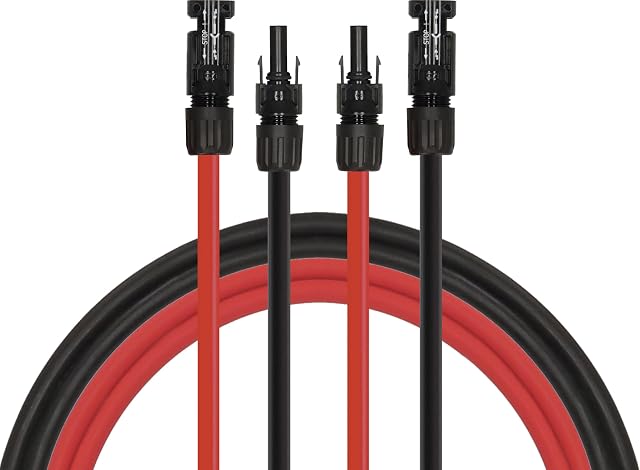

  5. Brennenstuhl 10 m solar extension pair with Stäubli MC4 connectors

    Brennenstuhl Pair of 10 m extensions, 6 mm², original Stäubli MC4, EN 50618

    A pair of ten-metre 6 mm² extension leads fitted with original Stäubli MC4 connectors, rated to EN 50618 for up to 25 years at 90 °C.

    Length
    10 m each, first bullet — the longest in this family
    Cross-section
    6 mm², first bullet
    Connectors
    Original Stäubli MC4 connectors, plug and coupling, third bullet — the ONLY listing in this catalogue to name the connector manufacturer
    Expected voltage drop
    Nowhere in the listing
    Ingress rating
    Nowhere in the listing
    What a pair contains
    Two 10 m leads, first bullet; service life to EN 50618 of up to 25 years at 90 °C and 20 000 hours at up to 120 °C
    Amazon reference
    B0H4RTJHQK (same reference on 4 Amazon marketplaces)
    EAN
    4007123708031
    • Original Stäubli MC4 connectors, named — which resolves the whole MC4 compatibility question
    • A service life published with its temperature: 25 years at 90 °C, 20 000 hours at 120 °C
    • No voltage drop over ten metres, which at this length is where the figure would matter most

    Best for: A run where the connectors will be mated with a panel’s own Stäubli leads.

    ≈ £47 / €40
    Check price on Amazon
