Switching under load is what wears a switch out

The best battery isolator switches for 2026

An isolator is the switch that takes a battery out of the circuit for maintenance, storage or safety, and its rating is published twice: a continuous current it can carry indefinitely, and a much higher intermittent figure for a few seconds. Reading only the second overstates the switch by a wide margin. The other distinction that matters is whether it is rated to switch under load or only to isolate a circuit already at rest: opening a few hundred amps draws an arc across the contacts, and a switch not designed for it welds or erodes. Voltage rating must again be a DC figure. Terminal sizes decide which lugs fit, and the studs on this shelf are commonly M8 or M10. Mounting is panel or surface, and the operation is a lever, a removable key, or a rotary handle that can be padlocked — a real difference on a shared vehicle. Some units add a second pole for the negative or an auxiliary contact for a warning lamp. We compare continuous and intermittent current, DC voltage rating, load-switching capability, terminals, mounting and operation.

Every part on this shelf, side by side

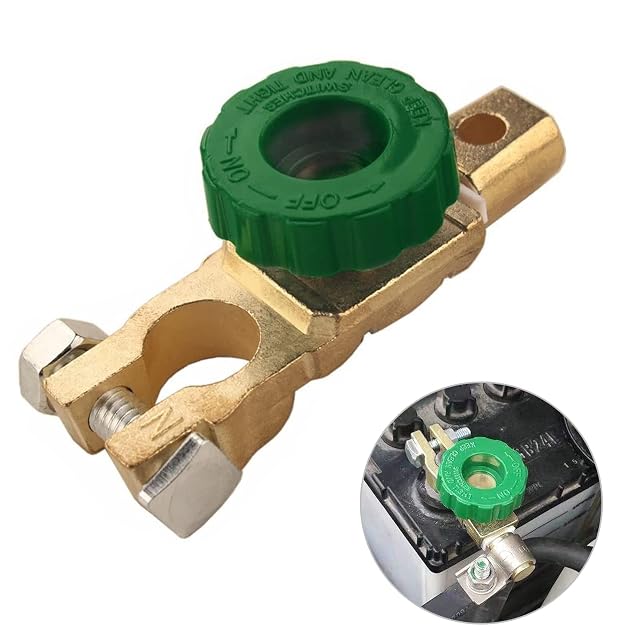

1.

   Tawveml Terminal-clamp isolator, 14–17 mm posts, 6/12/24 V

   A battery terminal isolator in copper-zinc alloy for battery posts of 14 to 17 mm, for 6 V, 12 V and 24 V systems, operated by a green knob.

   Continuous

   Nowhere in the listing

   Intermittent current

   Nowhere in the listing

   DC voltage rating

   6 V, 12 V and 24 V, third bullet

   Load-switching capability

   Nowhere in the listing

   Terminals

   Clamps directly to a battery post of 14 to 17 mm, first bullet

   Mounting

   None — it sits on the battery terminal itself

   Operation

   Turn the green knob to disconnect, fourth bullet

   Amazon reference

   B09N8RY83W (same reference on 6 Amazon marketplaces)

   EAN

   0652670053666

   • Fits directly to the post, so nothing has to be cut or crimped
   • Copper-zinc alloy named for the current path
   • No current rating at all, continuous or intermittent

   Best for: Isolating a vehicle battery over a winter without touching the wiring.

   ≈ €9

   Check price on Amazon

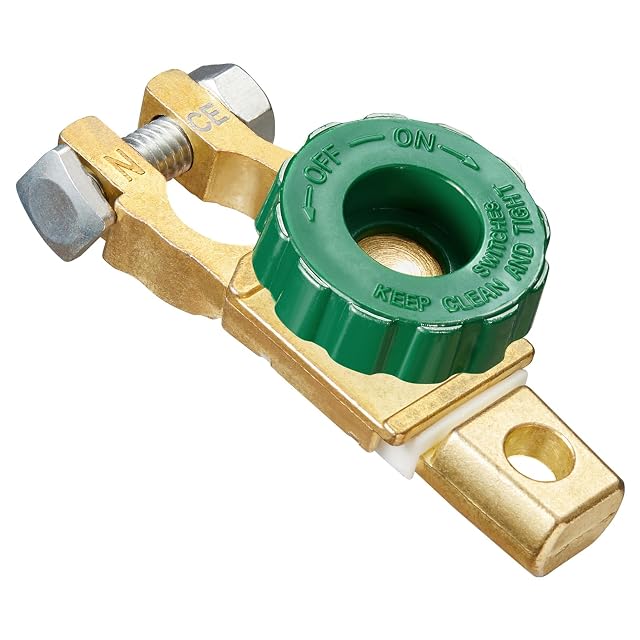

2.

   Spurtar Terminal isolator, 125 A continuous / 500 A brief, 15–17 mm

   A battery terminal isolator in copper-zinc alloy rated 125 A continuous and 500 A for short periods, for negative posts of 15 to 17 mm.

   Continuous

   125 A, first bullet

   Intermittent current

   500 A for short periods, first bullet

   DC voltage rating

   12 V and 24 V, first bullet

   Load-switching capability

   Nowhere in the listing

   Terminals

   Clamps to a negative post of 15 to 17 mm, second bullet

   Mounting

   None — it sits on the battery terminal itself

   Operation

   Turn the green knob to disconnect quickly and safely, fourth bullet

   Amazon reference

   B075CK7W3Z (same reference on 5 Amazon marketplaces)

   EAN

   0655302160992

   • Both current figures published — 125 A continuous and 500 A brief
   • Copper-zinc alloy named
   • Negative post only, which suits most vehicles and not a positive-earth installation

   Best for: A vehicle or caravan battery isolated between uses, at a hundred amps or less.

   ≈ £7 / €9

   Check price on Amazon

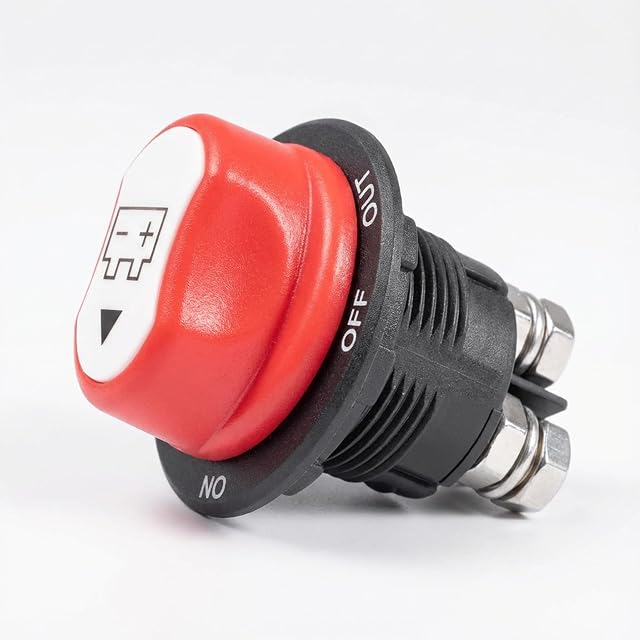

3.

   Carehabi Panel-mount on/off isolator, 100 A continuous, 12–32 V

   A panel-mounted battery isolator rated 100 A continuous across 12 V to 32 V DC, with a tinned core, an ABS body and a marked on/off label.

   Continuous

   100 A continuous, fifth bullet

   Intermittent current

   Nowhere in the listing

   DC voltage rating

   12 V to 32 V DC, fifth bullet — a window rather than a list of nominal voltages

   Load-switching capability

   Nowhere in the listing; it can be used alone or connected with other switches, fifth bullet

   Terminals

   A tinned inner core in an ABS plastic body, first bullet

   Mounting

   Panel-mounted — it fits into a surface rather than onto a battery post, from the title

   Operation

   A lever with a clear label marking the on and off positions, third bullet

   Amazon reference

   B0D876Z5PH (same reference on 4 Amazon marketplaces)

   EAN

   0635393037823

   • A voltage window rather than a list — 12 V to 32 V covers 12 V and 24 V systems with margin
   • Panel-mounted, so it can be put where a hand reaches rather than where the battery is
   • No intermittent or surge rating, on a switch that may sit in a starting circuit

   Best for: A camper installation where the isolator should be reachable from inside.

   ≈ €10

   Check price on Amazon

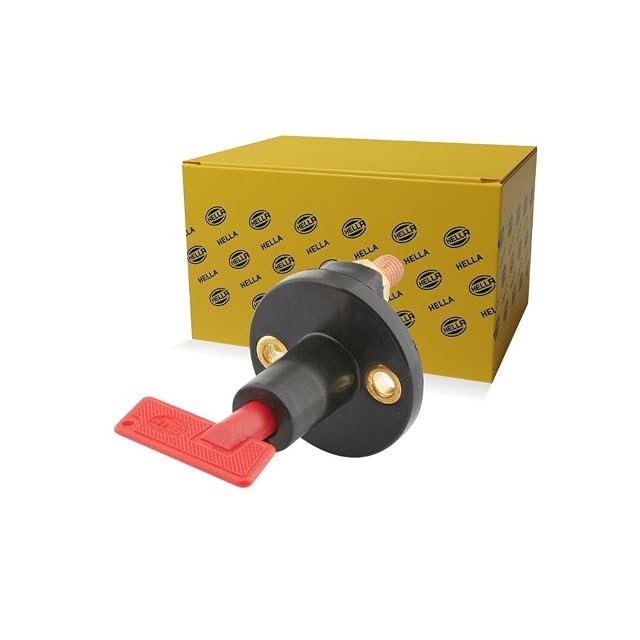

4.

   HELLA S33 key-operated isolator, 1000 A for 10 s at 12 V, DIN/ISO 40050-IPX2

   A key-operated battery isolator for positive or negative lines, rated 1000 A for ten seconds at 12 V, built to DIN/ISO 40050-IPX2 with two screw terminals.

   Continuous

   Not published as a single figure — instead the listing gives the supply cross-section for each continuous current: 35 mm² at 100 A, 70 mm² at 250 A, 250 mm² at 500 A, fourth bullet

   Intermittent current

   Maximum 1000 A for 10 seconds at 12 V, sixth bullet

   DC voltage rating

   12 V, sixth bullet

   Load-switching capability

   Nowhere in the listing; it switches battery and ignition current, first bullet

   Terminals

   Two screw studs, two nuts supplied per stud, third bullet

   Mounting

   Panel-mounted, rotary operation, from the title

   Operation

   A red key, removable in the off position; either the positive or the negative line can be switched, first and second bullets. DIN/ISO 40050-IPX2, seventh bullet

   Amazon reference

   B004K1ND2C (same reference on 6 Amazon marketplaces)

   EAN

   4082300002508

   • The only switch in this catalogue to cite a standard: DIN/ISO 40050-IPX2
   • Supply cross-sections published against three current levels — it tells you what to wire it with
   • No single continuous rating, so the figure has to be read off the cross-section table

   Best for: A workshop or commercial vehicle where the isolator has to be locked off.

   ≈ $22 / €15

   Check price on Amazon

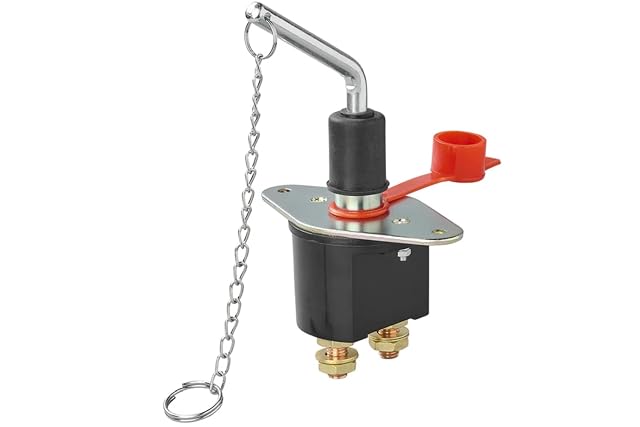

5.

   ProPlus Two-pole NATO-type isolator, 500 A continuous / 2500 A peak, with key

   A two-pole NATO-type battery isolator rated 500 A continuous and 2500 A peak, supplied with a key, covering 6 V to 48 V systems.

   Continuous

   500 A, third bullet — the highest continuous rating in this family

   Intermittent current

   2500 A peak for short periods, second bullet

   DC voltage rating

   6 V, 12 V, 24 V, 36 V and 48 V, first bullet — the widest voltage coverage here, and the only switch to reach 48 V

   Load-switching capability

   Nowhere in the listing; it is described as an emergency-stop switch, from the title

   Terminals

   Nowhere in the listing

   Mounting

   Two-pole, NATO type, from the title

   Operation

   A key is included, first bullet

   Amazon reference

   B0198UJ3AU (same reference on 5 Amazon marketplaces)

   EAN

   8718546657245

   • 500 A continuous and 2500 A peak — both published, and the highest pair in this family
   • Rated to 48 V, the only switch here that covers a 48 V battery bank
   • The terminals are not described at all, on a 500 A switch

   Best for: A 48 V bank or a heavy vehicle installation where both poles should break at once.

   ≈ €20

   Check price on Amazon

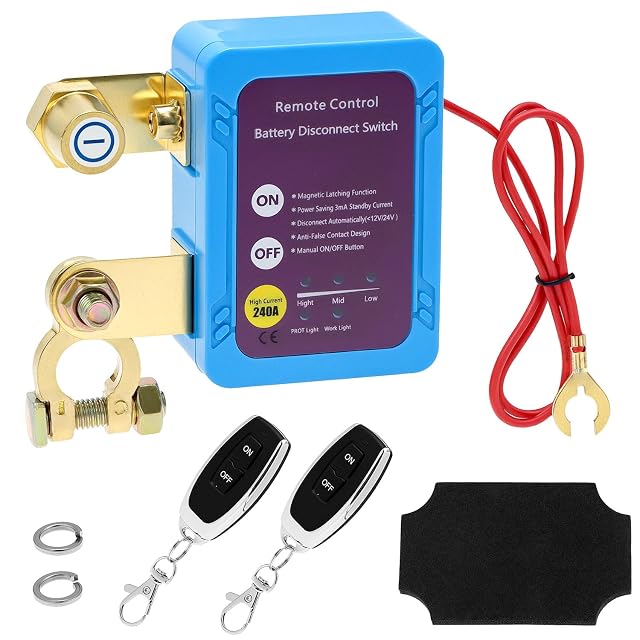

6.

   QWORK Remote-controlled isolator, 240 A, two fobs, 20 mA standby

   A wireless remote-controlled 12 V battery isolator rated 240 A with 300 A instantaneous, drawing 20 mA on standby and cutting off automatically below 7.8 V.

   Continuous

   240 A nominal, first bullet

   Intermittent current

   Up to 300 A instantaneous, first bullet

   DC voltage rating

   12 V, first bullet

   Load-switching capability

   Absent as a rating; the remote disables above 12 V for safety, third bullet

   Terminals

   Nowhere in the listing

   Mounting

   Nowhere in the listing

   Operation

   Two wireless remotes, first and fifth bullets; standby consumption 20 mA, automatic cut-off below 7.8 V, operating temperature 30° to 90°. CR2016 cells not included

   Amazon reference

   B0DFPV614Y (same reference on 4 Amazon marketplaces)

   EAN

   0795973840387

   • The standby draw is published — 20 mA — which is the figure a remote isolator has to answer for
   • An automatic low-voltage cut-off at 7.8 V
   • A remote isolator draws current permanently, which is the opposite of what an isolator is for

   Best for: A vehicle whose battery sits somewhere awkward and is isolated often.

   ≈ €22

   Check price on Amazon

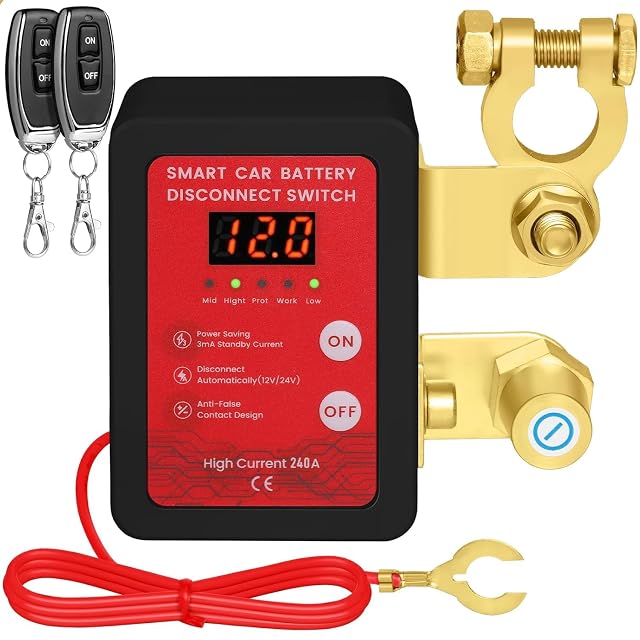

7.

   DkevEu Remote isolator with LED, 240 A, metal body, 120 s delay below 11.8 V

   A remote-controlled 12 V battery isolator rated 240 A with an LED and a metal body, cutting off automatically 120 seconds after the battery falls below 11.8 V.

   Continuous

   240 A, from the title

   Intermittent current

   Nowhere in the listing

   DC voltage rating

   12 V, from the title

   Load-switching capability

   Nowhere in the listing

   Terminals

   Connected on the negative side for stable performance, fourth bullet; the terminals themselves are not described

   Mounting

   Nowhere in the listing

   Operation

   A radio remote with an LED; below 11.8 V the switch cuts power automatically after 120 seconds, third bullet. Described as an upgraded version using a metal part where the previous generation did not, second bullet

   Amazon reference

   B0FBGQP2QD (same reference on 4 Amazon marketplaces)

   EAN

   0768634743617

   • The cut-off threshold is 11.8 V, which protects a lead-acid battery before it is deeply discharged
   • A delay of 120 seconds, so a momentary sag does not disconnect the vehicle
   • No standby current, which the other remote switch in this family publishes

   Best for: A vehicle parked for weeks where the battery should be saved before it is flat.

   ≈ €35

   Check price on Amazon
