The best DC circuit breakers for 2026

A DC breaker does what a fuse does and can be reset, which makes it the usual choice on a solar string or a battery feed that may need isolating. The specifications are the same three as any protective device — rated current, rated voltage and breaking capacity — with the qualification that all three must be given for direct current. A breaker taken from a household consumer unit and used on a 400 V solar string is outside its design: the arc it has to extinguish does not stop on its own. Many DC breakers are also polarity-sensitive, with the input and output marked on the case, because the arc chute is designed to blow the arc in one direction; wired backwards, the device still switches and no longer protects. The number of poles matters on a string where both conductors are live to earth. Trip characteristics — the curve — decide how long an overload is tolerated before the breaker opens, and the curve that suits a motor is not the one that suits a panel string. Mounting is usually a DIN rail, which decides the enclosure. We compare rated current, DC voltage rating, breaking capacity, polarity, poles, trip curve and mounting.

Every part on this shelf, side by side

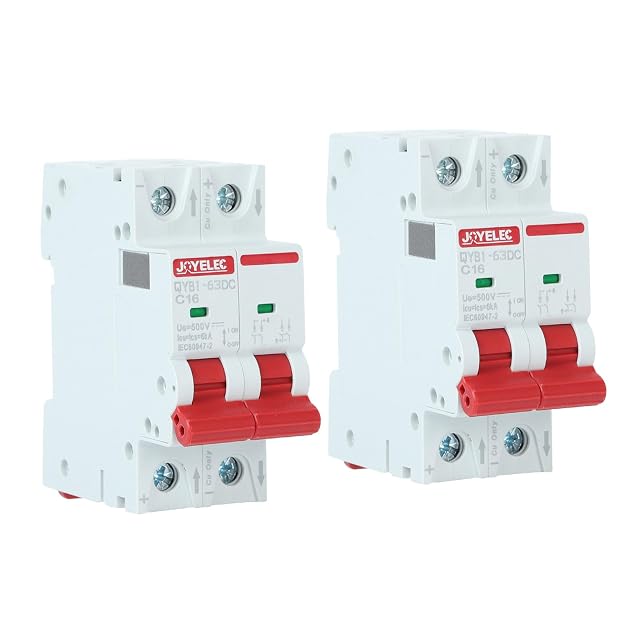

  1. JOYELEC two-pole DC circuit breaker on a DIN rail

    JOYELEC Pair of 16 A two-pole DC breakers, 500 V, 4.5 kA

    Two 16 A two-pole DC miniature circuit breakers rated 500 V DC with a 4.5 kA breaking capacity, in a flame-retardant housing for 35 mm DIN rail.

    Rated current
    16 A, from the title
    DC voltage rating
    500 V DC, from the title and the second bullet
    Breaking capacity
    4.5 kA, second bullet — the only breaking capacity published in this family
    Polarity
    Nowhere in the listing
    Poles
    Two, from the title
    Trip curve
    Nowhere in the listing — described as highly sensitive with a fast response, which is not a curve
    Mounting
    In a distribution box or on 35 mm DIN rail with screw terminals, fifth bullet
    Amazon reference
    B0DXKXZVVD (same reference on 4 Amazon marketplaces)
    EAN
    0734038559499
    • A breaking capacity with a figure — 4.5 kA — which nothing else in this family publishes
    • 500 V DC and 16 A both stated, plainly
    • No trip curve, so what it does at switch-on is unknown

    Best for: A 16 A string on a photovoltaic array that has a DIN rail to mount it on.

    ≈ €12
    Check price on Amazon
  2. HOSPAOP two-pole DC isolator with a status indicator

    HOSPAOP Pair of 20 A two-pole DC breakers, 500 V, red/green indicator

    Two 20 A two-pole DC circuit breakers rated 500 V for photovoltaic systems, with a red and green status indicator and 35 mm DIN rail mounting.

    Rated current
    20 A, from the title
    DC voltage rating
    500 V, from the title
    Breaking capacity
    Nowhere in the listing
    Polarity
    Nowhere in the listing
    Poles
    Two, from the title
    Trip curve
    Nowhere in the listing
    Mounting
    35 mm DIN rail, described as quick and stable, second bullet; a red and green indicator shows the state at a glance, third bullet
    Amazon reference
    B0DYTX32SG (same reference on 6 Amazon marketplaces)
    EAN
    0788754332621
    • A visual status indicator, green for closed, which no other breaker here has
    • A C-shaped ergonomic handle described for operating it under load
    • No breaking capacity, the figure the other breaker in this family publishes

    Best for: A 20 A array where the isolator state should be readable from across the room.

    ≈ €15
    Check price on Amazon
